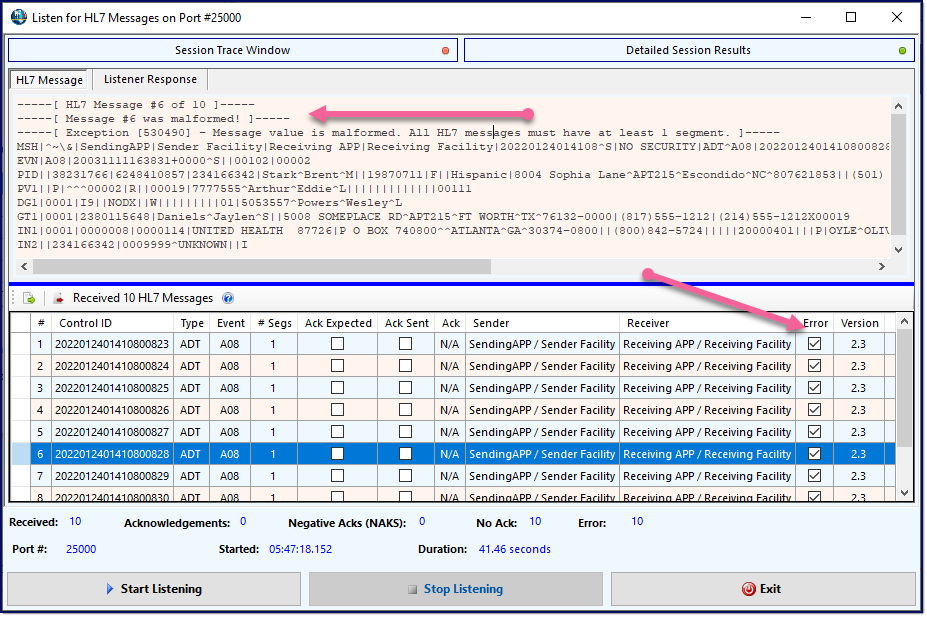

Whenever the Listener Session stop your results are compiled and the top portion of the window becomes a selection between the Session Trace Window and the Detailed Session Results.













In the Results Grid you can scroll through the messages received and see at a glance what occurred. As you select an individual message you can see the actual HL7 message you received as well as the response from the HL7 Listener in the response detailed area above.



The Results Grid is read-only and has the following fields:



•# - The Message index within the data file you are using. This field will also show the Pass # if you have configured the software to repeat multiple times.

•Control ID - The Message Control ID (MSH 10.1) from the HL7 message.

•Type - The HL7 Message Type (MSH 9.1).

•Event - The HL7 Message Event (MSH 9.2).

•Segments - The number of HL7 segments in the message.

•Ack Expected - A checkbox indicating whether there was a HL7 Acknowledgement expected.

•Ack Sent - A checkbox indicating whether there was a HL7 Acknowledgement returned.

•Ack - The actual text value of the Acknowledgement Type received back, or "None" or "N/A" if no ACK was sent.

•Sender - Will be the Sending Application (MSH 3.1) a slash "/" and the Sending Facility (MSH 4.1).

•Sender - Will be the Receiving Application (MSH 5.1) a slash "/" and the Receiving Facility (MSH 6.1).

•Error - A checkbox indicating whether there was any type of error encountered or if the message was Malformed.







---
