Property Name

Data Type

ExceptionHandling

Uses the Standard Exceptions Interface

FieldInstances

int (read only) - Will be the number times the field REPEATS (see Working With Repeating Fields below).

FieldRepeats

bool (read only)- Will indicate whether the field repeats (IE FieldInstances > 1)

Index

int (read only) - Will be the ordinal position (1 based) of the field within the ParentSegment.

ParentSegment

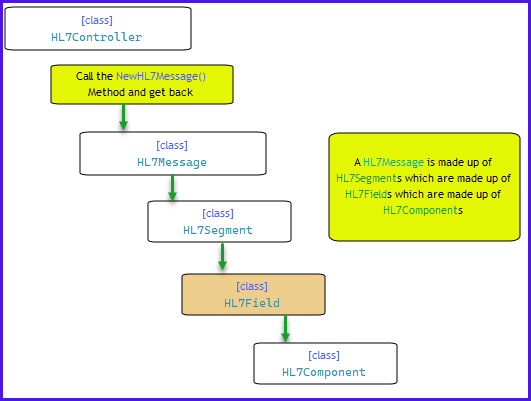

HL7Segment Object (read only) - Reference to the Parent object that created the HL7Field.

SubComponentDelimiter

string (read only)- Will be the SubComponentDelimiter encoding character passed down from ParentSegment.ParentMessage. See Encoding Characters.

Tag

CORETag Object

TrimEmptyInstances

bool (Default = false) - If set to true BEFORE you access the Value property then empty trailing EMPTY repeat instances will be trimmed.

Example1: Value if == false - "R1C1^R1C2~R2C1~R3C1^R3C2~~~~~"

Example2: Value if == true - "R1C1^R1C2~R2C1~R3C1^R3C2"

NOTE: This property is not inherited and must be set by you in code.

Value

string - Get returns the string value of the entire field. You can Set this value also by passing in a fully formed HL7 field string (Example: "Smith^John^S")

Method

Return Value

ExceptionHandling

Uses the Standard Exceptions Interface

Clear()

void - Clears the Value property (Same as setting Value = "")

IsEmpty()

bool Indicates whether the object has any value in any repeating instance.

*See Below For Methods:

•GetFieldComponent()

•GetComponentValue()

•SetComponentValue()

•GetRepeatInstanceValue()

•SetRepeatInstanceValue()

HL7Component GetFieldComponent(int componentNumber = 1, int repeatInstance = 1, bool addIfNotPresent = false) Returns the HL7Component object at position componentNumber for instance repeatInstance of the segment. IF padIfNotPresent == true then components and/or instances are added to the object, otherwise it will return null if the componentNumber or repeatInstance does not exist.

Example Code (C#):

          //GetFieldComponent() Demo Simple Scenario

           HL7Segment oSeg = oMessage.AddSegment("PID|1|f2|f3|f4|Doe^John");

          //oSeg is a connected segment object with 5 fields representing a PID segment

           HL7Field oField;

           oField = oSeg.GetField(5);

          //NOW oField will be the HL7Field object for field #5 of the PID segment

          //Now I want to change the first name using a HL7Component object

           HL7Component p2 = oField.GetFieldComponent(2, 1, true);

           p2.Value = "James";

string GetComponentValue(int componentNumber = 1, int repeatInstance = 1) Returns the string Value of the HL7Component object at position componentNumber for instance repeatInstance. Will be "" if either does not exist.

Example Code (C#):

          //GetComponentValue() Scenario

           HL7Segment oSeg = oMessage.AddSegment("PID|1|f2|f3|f4|Doe^John");

          //oSeg is a connected segment object with 5 fields representing a PID segment

           HL7Field oField;

           oField = oSeg.GetField(5);

          //NOW oField will be the HL7Field object for field #5 of the PID segment

          string firstName, middleName;

           firstName = oField.GetComponentValue(2);

          //is the exact same as calling

           firstName = oField.GetComponentValue(2, 1);

          //firstName == "John"

           middleName = oField.GetComponentValue(3);

          //middleName == "" because field #5 does not have a component #3.

void SetComponentValue(string value, int componentNumber = 1, int repeatInstance = 1, bool addIfNotPresent = true) Will set the Value of the HL7Component object at position componentNumber for instance repeatInstance. If addIfNotPresent == false will do nothing if either does not exist.

Example Code (C#):

          //SetComponentValue() Scenario

           HL7Segment oSeg = oMessage.AddSegment("PID|1|f2|f3|f4|Doe^John");

          //oSeg is a connected segment object with 5 fields representing a PID segment

           HL7Field oField;

           oField = oSeg.GetField(5);

          //NOW oField will be the HL7Field object for field #5 of the PID segment

          string firstName, middleName;

          //Now Set Component values

           oField.SetComponentValue("James", 2);

          //Is the exact same as calling

           oField.SetComponentValue("James", 2, 1, true);

           firstName = oField.GetComponentValue(2);

          //firstName == "James"

          //now set the middle name which does NOT exist yet

           oField.SetComponentValue("M", 3, 1, false);

           middleName = oField.GetComponentValue(3);

          //MiddleName == ""

          //by using false in parameter 4 I am effectively saying

          //IF there is a middle name, change it to "M"

          //Now set Middle Name no matter what

           oField.SetComponentValue("M", 3);

           middleName = oField.GetComponentValue(3);

          //MiddleName == "M"

          //Parameters 3 and 4 are defaulted to 1 and true respectively

string GetRepeatInstanceValue(int repeatInstance = 1) Returns the FULL field value of  INSTANCE #repeatInstance of the HL7Field object.  Will be "" if repeatInstance does not exist.

Example Code (C#):

          //GetRepeatInstanceValue() Demo

           HL7Segment oSeg = oMessage.AddSegment("PID|1|");

          //oSeg is a connected segment object with 5 fields representing a PID segment

           HL7Field oField = oSeg.GetField(2, true);

          //oField is now empty

           oField.Value = "f2ID1^ValA^333~f2ID2~f2ID3^AA~f2ID4^ValD^999";

          //Field # 2 has been completely populated

          int a = oField.FieldInstances;

          //a = 4. The field repeats 4 times

          string tst = oField.GetRepeatInstanceValue(3);

          //tst == "f2ID3^AA"

void SetRepeatInstanceValue(string value, int repeatInstance, bool addIfNotPresent = true) Will set the FULL field value of the HL7Field object of  INSTANCE #repeatInstance. If addIfNotPresent == true and repeatInstance < FieldInstances new instances will be added.If addIfNotPresent == false and repeatInstance < FieldInstances nothing will happen.

Example Code (C#):

          //SetRepeatInstanceValue() Demo

           HL7Segment oSeg = oMessage.AddSegment("PID|1|");

          //oSeg is a connected segment object with 5 fields representing a PID segment

           HL7Field oField = oSeg.GetField(2, true);

          //oField is now an empty field #2

           oField.SetRepeatInstanceValue("Instance3^C2^C3", 3, true);

          string tst = oField.Value;

          //tst == "~~Instance3^C2^C3"

          //Field # 2 has been completely populated ONLY with a 3rd instance.

          int a = oField.FieldInstances;

          //a = 3. The field repeats 3 times

           oField.SetRepeatInstanceValue("Instance2", 2, true);

           tst = oField.Value;

          //tst == "~Instance2~Instance3^C2^C3"

           oField.SetRepeatInstanceValue("Instance1^id1", 1, true);

           tst = oField.Value;

          //tst == "Instance1^id1~Instance2~Instance3^C2^C3"

           oField.SetRepeatInstanceValue("Instance4", 4, true);

           tst = oField.Value;

          //tst == "Instance1^id1~Instance2~Instance3^C2^C3~Instance4"

           a = oField.FieldInstances;

          //a = 4. The field repeats 4 times

          //Get Component #2 of Instance #3

           tst = oField.GetComponentValue(2, 3);

          //tst == "C2"
